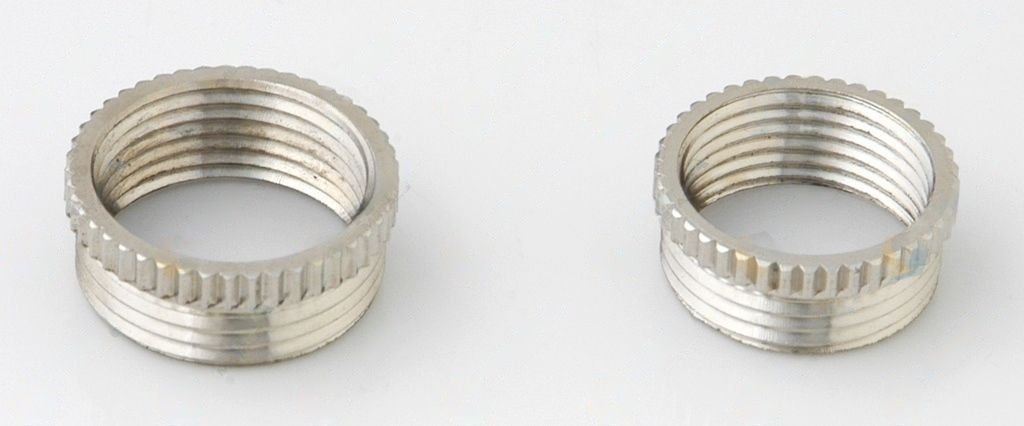

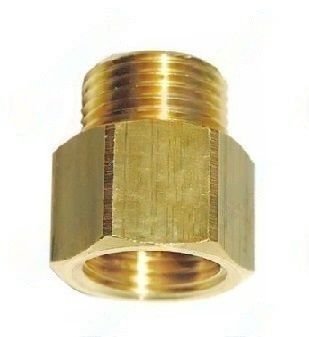

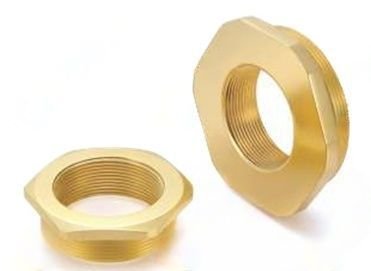

Reducer
We at Paras Brass Products manufacture all kind of reducers for industrial and hazardous area application which provide effectiveness connection between cable entry devices and equipment having dis-similar thread. Reducer are designed to reduce dissimilar thread.
Type of Reducers
- Round Reducer
- Hex Reducer
- Enlarging Reducer
Thread Availability
- All kind of threading options as required are available:
- PG, Metric and NPT

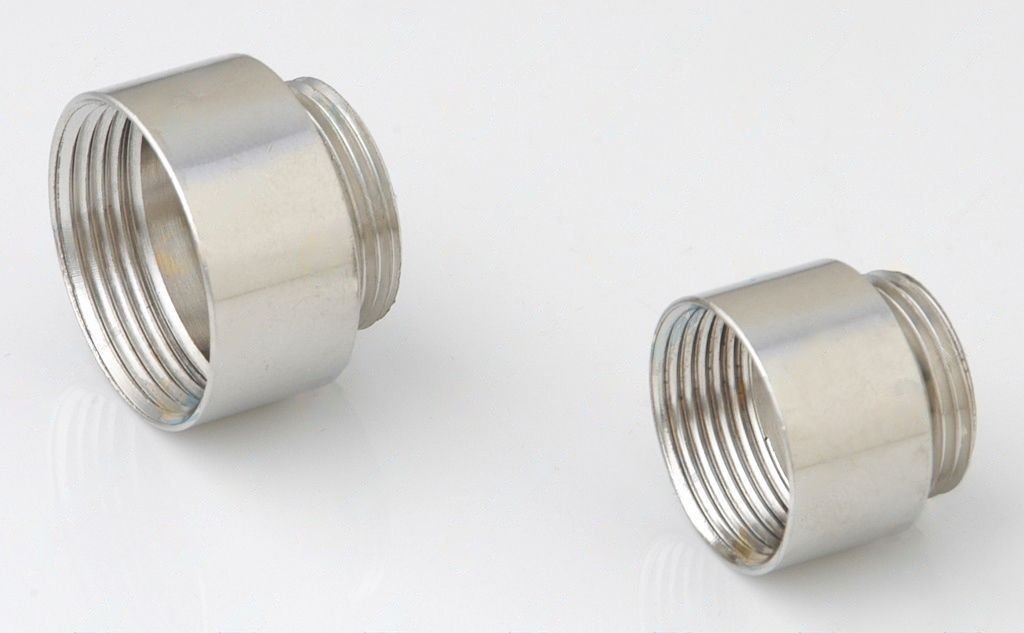

Adaptor
Paras Brass Products offer a range of adaptor for industrial and hazardous area application which provide effectiveness connection between cable entry devices and equipment having dis-similar thread. Adaptors are used where the thread size of the cable gland or connection device is larger than, or of an equivalent size, to the entry thread of the enclosure.
Type of Adaptors
- Round Adaptors
- Hex Adaptors
Thread Availability
- All kind of threading options as required are available:
- PG, Metric and NPT

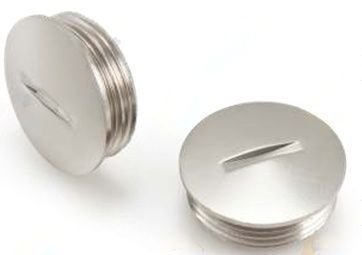

Stop Plug
Stop Plug are designed to sealing or close any unused entries in electrical enclosures, equipment and junction boxes, etc. Stop Plug are always used to with ring to seal properly. Stop plug are also used for maintain integrity of enclosure and IP rating of equipment. Stop Plug are generally available in Brass, Nickel Plated Brass, Mild Steel and Nylon.
Type of Stop Plugs

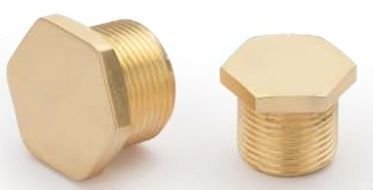

- Hex Plug
- Slotted Round Type Plug
- Collar Type Plug
- Allen Key Type Plug
Thread Availability
- All kind of threading options available as per requirement.

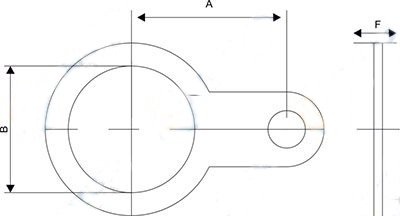

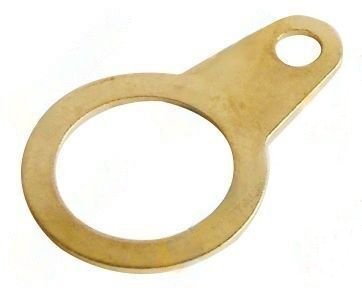

Earth Tags
Material & Finish
Applications
| METRIC CODE | SIZE | NPT CODE | SIZE | A | B | (NPT) ‘B’ | F |
| ET-1M | M20 | MM-ET-1N | 1/2″NPT | 27 | 21 | 22 | 1.5 |
| ET-2M | M25 | MM-ET-2N | 3/4″NPT | 33 | 27 | 27 | 1.5 |
| ET-3M | M32 | MM-ET-3N | 1″NPT | 36 | 34 | 34 | 1.5 |
| ET-4M | M40 | MM-ET-4N | 1.1/4″NPT | 44 | 41 | 43 | 1.5 |
| ET-5M | M50 | MM-ET-5N | 1.1/2″NPT | 50 | 51 | 49 | 1.5 |
| ET-6M | M63 | MM-ET-6N | 2″NPT | 65 | 64 | 61 | 1.5 |
| ET-7M | M75 | MM-ET-7N | 2.1/2″NPT | 58 | 77 | 77 | 1.5 |
| ET-8M | M90 | MM-ET-8N | 3″NPT | 71 | 91 | 89 | 1.5 |
| ET-9M | M100 | MM-ET-9N | 4″NPT | 81 | 101 | 115 | 1.5 |

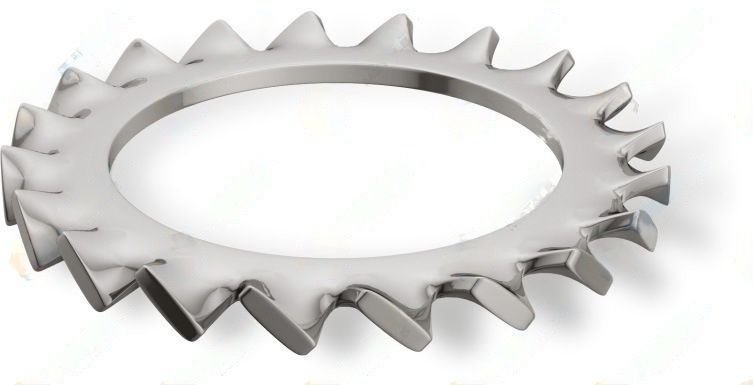

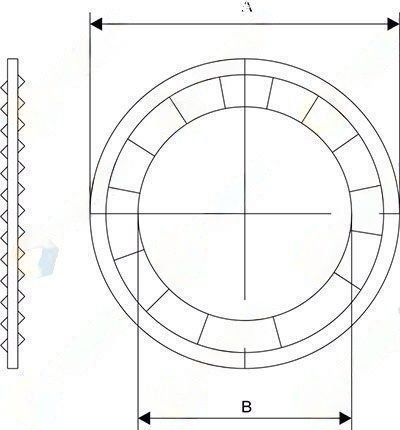

Serrated Washer External
Material & Finish
Applications

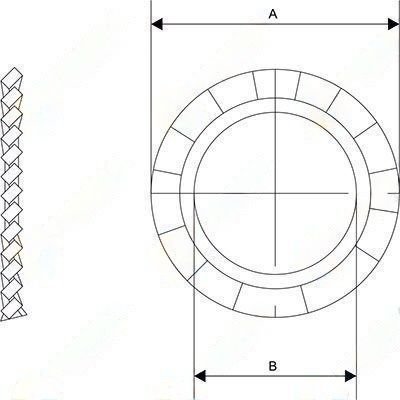

| METRIC CODE | SIZE | A | B |
| SW-M16E | M16 | 26.00 | 17.00 |
| SW-M20E | M20 | 33.00 | 21.00 |
| SW-M25E | M25 | 38.00 | 25.00 |
| SW-M32E | M32 | 48.00 | 33.00 |
| SW-M40E | M40 | 58.00 | 40.00 |
| SW-M50E | M50 | 66.00 | 50.00 |
| SW-M63E | M63 | 80.00 | 63.00 |
| SW-M75E | M75 | 95.00 | 75.00 |
| SW-M90E | M90 | 110.00 | 90.00 |
| SW-M100E | M100 | 130.00 | 100.00 |

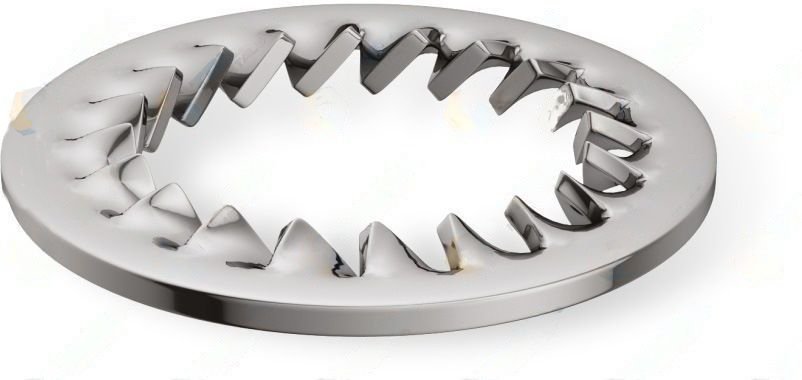

Serrated Washer Internal
Material & Finish
Applications
| METRIC CODE | SIZE | A | B |
| SW-M20I | M20 | 32.50 | 20.50 |
| SW-M25I | M25 | 38.00 | 25.50 |
| SW-M32I | M32 | 48.00 | 33.00 |
| SW-M40I | M40 | 58.00 | 40.50 |
| SW-M50I | M50 | 66.00 | 50.50 |
| SW-M63I | M63 | 80.00 | 63.50 |
| SW-M75I | M75 | 95.00 | 75.50 |
| SW-M90I | M90 | 110.00 | 90.50 |
| SW-M100I | M100 | 130.00 | 100.50 |
